DAC/AOC Cable

DAC Cable

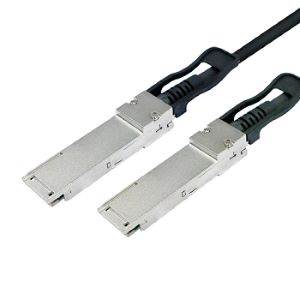

QSFP28 / QSFP28 by 100G

Specification
Type: Passive / Copper
End A =QSFP28 4X (SFF 8665)
End B = 2*QSFP28 4X (SFF 8665)
Bend Radius = 5X OD (Compliant to SFF 8417)
Differential signal rate: Tx and Rx each 25.87 Gb/s x 4 pair
Impedance: 100 ohms differential, AC-coupled I/O
Temperature Range - Operating: -0°C to +70°C

QSFP28 / QSFP28*2 Breakout by 100G

Specification
Type: Passive / Copper
End A =QSFP28 4X (SFF 8665)
End B = 2*QSFP28 4X (SFF 8665)
Bend Radius = 5X OD (Compliant to SFF 8417)
Differential signal rate: Tx and Rx each 25.87 Gb/s x 4 pair
Impedance: 100 ohms differential, AC-coupled I/O
Temperature Range - Operating: -0°C to +70°C

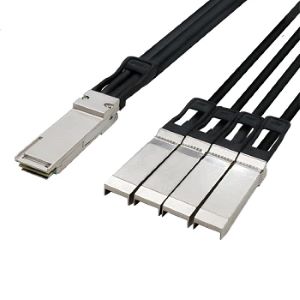

QSFP28 / SFP28*4 Breakout by 100G

Specification
Type: Passive / Copper
End A =QSFP28 4X (SFF 8665)
End B = 4*SFP28 (SFF 8402)
Bend Radius = 5X OD (Compliant to SFF 8417)
Differential signal rate: Tx and Rx each 25.87 Gb/s x 4 pair
Impedance: 100 ohms differential, AC-coupled I/O
Temperature Range - Operating: -0°C to +70°C

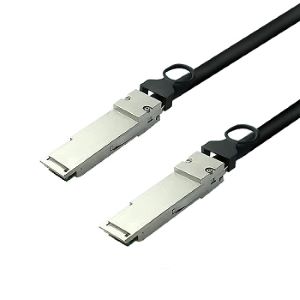

QSFP+ / QSFP+ （TypeI）by 40G

Specification
Type: Passive / Copper
End A =QSFP+ 4X (SFF 8436)
End B =QSFP+ 4X (SFF 8436)
Bend Radius = 5X OD (Compliant to SFF 8417)
Differential signal rate: Tx and Rx each 10.3125 Gb/s x 4 pair
Impedance: 100 ohms differential, AC-coupled I/O
Temperature Range - Operating: -0°C to +70°C

QSFP+ / QSFP+ （TypeII）by 40G

Specification
Type: Passive / Copper
End A =QSFP+ 4X (SFF 8436)
End B = QSFP+ 4X (SFF 8436)
Bend Radius = 5X OD (Compliant to SFF 8417)
Differential signal rate: Tx and Rx each 10.3125 Gb/s x 4 pair
Impedance: 100 ohms differential, AC-coupled I/O
Temperature Range - Operating: -0°C to +70°C

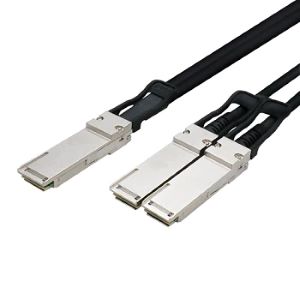

QSFP+ / QSFP+*2 Breakout by 40G

Specification
Type: Passive / Copper
End A =QSFP+ 4X (SFF 8436)
End B = 2* QSFP+ 4X (SFF 8436)
Bend Radius = 5X OD (Compliant to SFF 8417)
Differential signal rate: Tx and Rx each 10.3125 Gb/s x 4 pair
Impedance: 100 ohms differential, AC-coupled I/O
Temperature Range - Operating: -0°C to +70°C

QSFP+ / SFP+*4 Breakout by 40G

Specification
Type: Passive / Copper
End A =QSFP+ 4X (SFF 8436)
End B = 4* SFP+ (SFP+ MSA)
Bend Radius = 5X OD (Compliant to SFF 8417)
Differential signal rate: Tx and Rx each 10.3125 Gb/s x 4 pair
Impedance: 100 ohms differential, AC-coupled I/O
Temperature Range - Operating: -0°C to +70°C

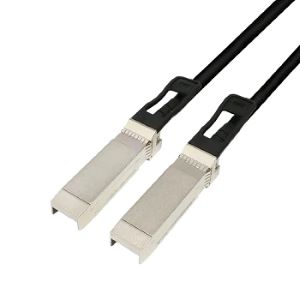

SFP28 / SFP28 by 25G

Specification
Type: Passive / Copper
End A =SFP28 (SFP28 MSA)
End B = SFP28 (SFP28 MSA)
Bend Radius = 5X OD (Compliant to SFF 8417)
Differential signal rate: Tx and Rx each 25Gb/s
Impedance: 100 ohms differential, AC-coupled I/O
Temperature Range - Operating: -0°C to +70°C

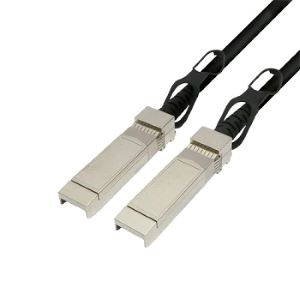

SFP+ / SFP+ （Pull Tab TypeI）by 10G

Specification
Type: Passive / Copper
End A =SFP+ (SFP+ MSA)
End B = SFP+ (SFP+ MSA)
Bend Radius = 5X OD (Compliant to SFF 8417)
Differential signal rate: Tx and Rx each 10.3125 Gb/s
Impedance: 100 ohms differential, AC-coupled I/O
Temperature Range - Operating: -0°C to +70°C

SFP+ / SFP+ （Pull Tab TypeII）by 10G

Specification
Type: Passive / Copper
End A =SFP+ (SFP+ MSA)
End B = SFP+ (SFP+ MSA)
Bend Radius = 5X OD (Compliant to SFF 8417)
Differential signal rate: Tx and Rx each 10.3125 Gb/s
Impedance: 100 ohms differential, AC-coupled I/O
Temperature Range - Operating: -0°C to +70°C

AOC Cable


SFP+ / SFP+ by 10G

Specification
Type: Active / Optical
End A =SFP+ 4X (SFF 8431)
End B =SFP+ 4X (SFP 8431)
Bend Radius = 25m
Data Rate: 10.3 Gbps
Impedance: 100 ohms differential, AC-coupled I/O
Temperature Range - Operating: -0°C to +70°C
Performance: BER < 10-12

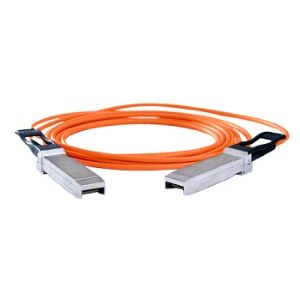

SFP28 / SFP28 by 25G

Specification
Type: Active / Optical
End A = SFP28 (SFP28 MSA)
End B = SFP28 (SFP28 MSA)
Bend Radius = 25m
Data Rate: 25Gbps
Impedance: 100 ohms differential, AC-coupled I/O
Temperature Range - Operating: -0°C to +70°C
Performance: BER < 10-12

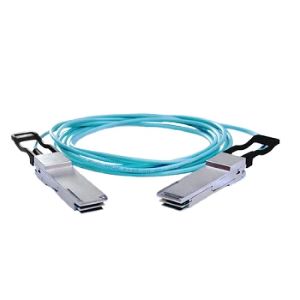

QSFP+ / QSFP+ by 40G

Specification
Type: Active / Optical
End A =QSFP+ 4X (SFF 8436)
End B =QSFP+ 4X (SFF 8436)
Bend Radius = 25m
Data rates : 40Gbps
Impedance: 100 ohms differential, AC-coupled I/O
Temperature Range - Operating: -0°C to +70°C
Performance: BER < 10-12

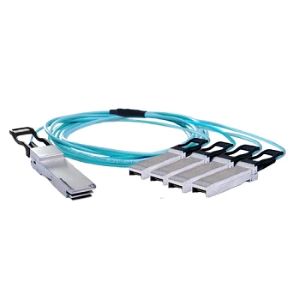

QSFP+ / SFP+*4 by 40G

Specification
Type: Active / Optical
End A =QSFP+ 4X (SFF 8436)
End B =4*SFP+ 4X (SFF 8431)
Bend Radius = 25m
Data rates : 40Gbps
Impedance: 100 ohms differential, AC-coupled I/O
Temperature Range - Operating: -0°C to +70°C
Performance: BER < 10-12

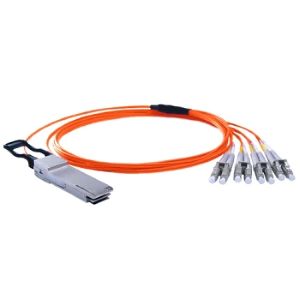

QSFP+ / Duplex LC*4 by 40G

Specification
Type: Active / Optical
End A =QSFP+ 4X (SFF 8436)
End B =4* Duplex LC
Bend Radius = 25m
Data rates : 40Gbps
Impedance: 100 ohms differential, AC-coupled I/O
Temperature Range - Operating: -0°C to +70°C
Performance: BER < 10-12

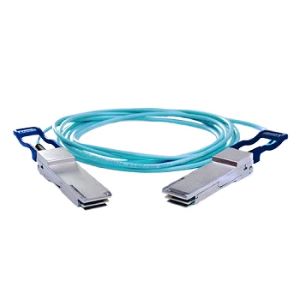

QSFP28 / QSFP28 by 100G

Specification
Type: Active / Optical
End A =QSFP28 4X (SFF 8665)
End B = QSFP28 4X (SFF 8665)
Bend Radius = 25m
Data rates: 100Gbps
Impedance: 100 ohms differential, AC-coupled I/O
Temperature Range - Operating: -0°C to +70°C
Performance: BER < 10-12
